HWATEK WIRES و CABLE CO.، LTD.
|
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة غمد: | PVC | مادة العزل: | PVC |
|---|---|---|---|
| شكل المواد: | سلك مستدير | نوع الموصل: | نحاس عاري مجدول |
| موصل AWG: | 26-4/0AWG | تغطية التضفير: | 70 ٪ ، 80 ٪ ، 85 ٪ ، 90 ٪ ، 95 ٪ |
| درجة الحرارة المقدرة: | -40 ~ 105 درجة مئوية | الجهد المقنن: | 600/1000V |
| أقصى مقاومة للموصل: | 4.95 Ω/km (لـ HTD *** 023) | منطقة الموصل: | 4 ، 6 ، 10 ، 16 ، 25 ، 35 ، 50 مم مربع |
| قطر الموصل: | 2.59 ، 3.54 ، 4.58 ، 5.74 ، 7.17 ، 8.49 ، 10.26 مم | سمك العزل: | 1.51 ، 1.53 ، 1.61 ، 1.63 ، 1.67 ، 2.01 ، 2.52 مم |
| القطر الاسمي: | 5.60 ، 6.60 ، 7.80 ، 9.00 ، 10.50 ، 12.50 ، 15.30 مم | قطر سترة: | 18.30 ، 20.80 ، 23.80 ، 26.80 ، 30.80 ، 35.80 ، 42.80 مم |
| النوى: | 2 ~ 7 ، 2 ~ 5 ، 2 ~ 40 | ||
| إبراز: | PVC jacket industrial cable,flexible cable 600/1000V,industrial cable 305m roll,flexible cable 600/1000V,industrial cable 305m roll |
||
| Attribute | Value |
|---|---|
| Sheath Material | PVC |
| Insulation Material | PVC |
| Material Shape | Round Wire |
| Range of Application | Industrial Control |
| Brand | Hwatek |
| Color | Optional |
| Qty/Roll | 305m,610m or as Request |
| Transport Package | Rolled in Reels, Packed in Pallets. |
| Trademark | Hwatek |
| Origin | China |
| HS Code | 8544492100 |

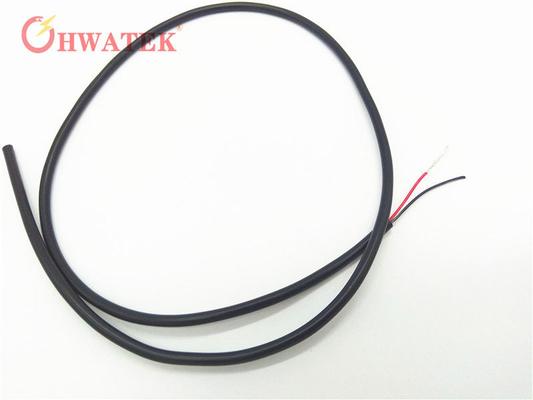

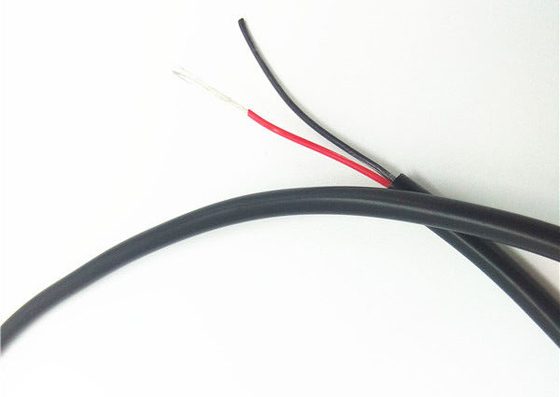

These flexible power supply cables are designed for use in engineering machinery, machine processing equipment, logistics delivery systems, lifting applications, and other industrial control environments.
| Product Number | Cores | Area mm² | Conductor | NO./mm | Conductor Dia mm | Nom. Thickness mm | Nom. Dia. mm | Max. Cond. Resistance (200C) Ω/km |
|---|---|---|---|---|---|---|---|---|
| HTD***023 | 2~7 | 4 | 81/0.25 | 2.59 | 1.51 | 5.60 | 18.30 | 4.95 |
| HTD***024 | 2~7 | 6 | 7/18/0.25 | 3.54 | 1.53 | 6.60 | 20.80 | 3.30 |
| HTD***025 | 2~7 | 10 | 7/30/0.25 | 4.58 | 1.61 | 7.80 | 23.80 | 1.91 |
| HTD***026 | 2~7 | 16 | 7/47/0.25 | 5.74 | 1.63 | 9.00 | 26.80 | 1.21 |
| HTD***027 | 2~5 | 25 | 7/73/0.25 | 7.17 | 1.67 | 10.50 | 30.80 | 0.780 |
| HTD***028 | 2~5 | 35 | 19/37/0.25 | 8.49 | 2.01 | 12.50 | 35.80 | 0.554 |
| HTD***029 | 2~40 | 50 | 19/54/0.25 | 10.26 | 2.52 | 15.30 | 42.80 | 0.386 |
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
A: Yes, we are willing to arrange samples for you.
A: Normally we can complete orders in 2-3 weeks, and 5-6 weeks during peak season.
A: We provide pre-production samples before mass production and conduct final inspections before shipment.
