HWATEK WIRES و CABLE CO.، LTD.
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
| الجهد المقنن: | AC450/750V | درجة الحرارة المقدرة: | -40 ~ +90 درجة مئوية |
|---|---|---|---|
| مواد موصل: | النحاس العاري أو المعلب تقطعت به السبل | مادة العزل: | TPE |
| مادة غمد: | TPU | الحد الأدنى لنصف قطر الانحناء: | 5xod |
| مواصفات الأسلاك: | 3 × 2.5+2 × 0.75 ، 3 × 4+2 × 0.75 ، 3 × 6+2 × 0.75 ، 5 × 2.5+2 × 0.75 ، 5 × 4+2 × 0.75 ، 5 × 6+2 × 0 | التيار المرجعي: | 18a ، 25a ، 34a ، 50a ، 67a |
| قطره غير محققين: | 12.7mm ، 14.4mm ، 16.3mm ، 15.3mm ، 17.8mm ، 19.8mm ، 22.9mm ، 27.5mm | شكل المواد: | سلك مستدير |
| الكمية لكل لفة: | 305m ، 610m أو كطلب | اختبار قابلية الاشتعال: | IEC60332-1 |
| البناء المرن: | نعم | خصائص مقاومة: | البرد ، الزيت ، الأوزون ، التآكل ، الأشعة فوق البنفسجية ، الضغط الخارجي ، الإجهاد الحراري |
| المعيار المرجعي: | GB/T 33594-2017 | ||
| إبراز: | 450/750V AC & DC EV Charging Cable,IEC60332-1 Flammability Test EV Charging Cable,Minimum Bending Radius 5xOD EV Charging Cable,IEC60332-1 Flammability Test EV Charging Cable,Minimum Bending Radius 5xOD EV Charging Cable |
||
| Certificate No. | Product Types |
|---|---|
| CQC16011142377 | EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
GB/T 33594-2017
AC: EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)

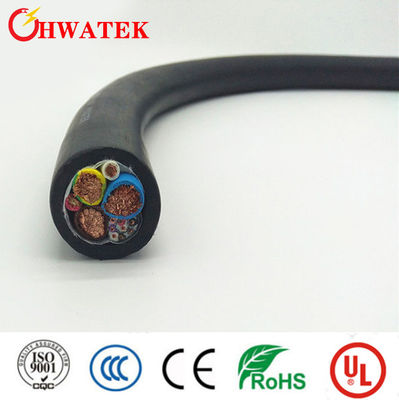

Product is applicable for all kinds of electric vehicles, charging piles, power stations, and charging stations.
| Category | Wire Specifications | Reference Current (A) | Diameter Unshielded (mm) |
|---|---|---|---|
| EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V | 3×2.5+2×0.75 | 18 | 12.7 | 11.1 |
| 3×4+2×0.75 | 25 | 14.4 | 12.8 | |
| 3×6+2×0.75 | 34 | 16.3 | 14.5 | |
| 5×2.5+2×0.75 | 18 | 15.3 | 13.7 | |
| 5×4+2×0.75 | 25 | 17.8 | 16.0 | |
| 5×6+2×0.75 | 34 | 19.8 | 17.8 | |
| 5×10+2×0.75 | 50 | 22.9 | 20.7 | |
| 5×16+2×0.75 | 67 | 27.5 | 25.1 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.

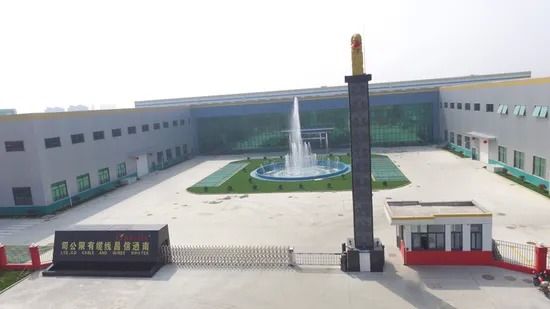

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34,000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
A: Yes, we are willing to arrange samples for you.
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
A: Always a pre-production sample before mass production and final inspection before shipment.
