HWATEK WIRES و CABLE CO.، LTD.
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة غمد: | TPE | مادة العزل: | TPU |
|---|---|---|---|
| شكل المواد: | سلك مستدير | مواصفات الكابل: | 2c × 80mm2+1c × 25mm2+2c × 4mm2+(3c × 0.75mm2) (p2)+(7c × 0.75mm2) |
| مواد موصل: | النحاس العاري الذين تقطعت بهم السبل | الجهد المقنن: | DC 1000V |
| درجة الحرارة المقدرة: | سترة -40 ~ 90 درجة مئوية ، عزل -40 ~ 125 درجة مئوية | أقصى مقاومة للموصل: | A: 0.242Ω/KM B: 0.78Ω/KM C: 4.95Ω/KM D&E: 26Ω/KM |
| جهد العزل تحمل: | AC 2.5kV/5min ، تيار التسرب ≤5MA | مين عزل المقاومة: | 500MΩ.KM |
| قوة الشد: | ≥20MPA | استطالة: | ≥ 300٪ |
| الحد الأدنى لنصف قطر الانحناء: | 6*OD | مقاومة التآكل: | ≥ 2000 مرة |
| القدرة الإنتاجية: | 20 كم/يوم | ||
| إبراز: | 1000V High Voltage EV Charging Cable,ISO Certified EV Charging Cable,RoHS Compliant EV Charging Cable,ISO Certified EV Charging Cable,RoHS Compliant EV Charging Cable |
||

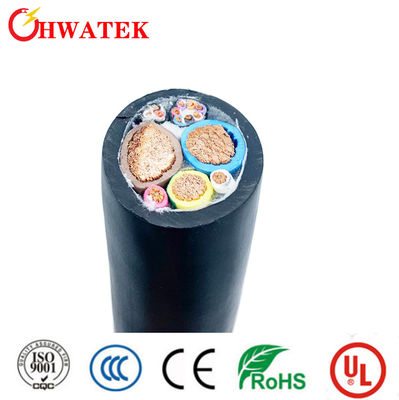

| SPECIFICATION | CABLE NAME | EV Cable |
|---|---|---|
| CABLE SPEC | 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant |
|
| Item |

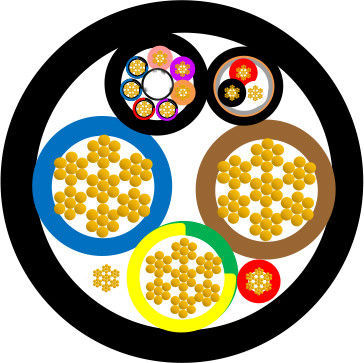

A: 2C×80mm2 B: 1C×25mm2 C: 1C×4mm2 D: (3C×0.75mm2)(P2) E: (7C×0.75mm2) |
|
| Component | Material | Specifications |
|---|---|---|
| CONDUCTOR | Bared copper stranded |
Size: 2580/0.20 ±0.008mm | 798/0.20 ±0.008mm | 224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar | 40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar | 40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar |
| O.D.(Ref.) | 12.40±0.25mm | 7.00±0.20mm | 2.70±0.15mm | 1.40±0.10mm | 1.40±0.10mm | |
| INSULATION | Thermoplastic(EF2585,85±3A) |
Min. average thickness: 1.60mm | 1.20mm | 1.00mm | 0.50mm | 0.50mm Min.thickness at any point: 1.34mm | 0.98mm | 0.80mm | 0.35mm | 0.35mm O.D.: 15.60±0.40mm | 9.60±0.30mm | 4.70±0.20mm | 2.50±0.10mm | 2.50±0.10mm |
| Electrical Characteristics | Physical Properties |
|---|---|
|
Rated voltage: DC 1000V Rated temperature: Jacket -40~90ºC Insulation -40~125ºC Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km Insulation Voltage withstand(Core A &B,10m): AC 2.5kV/5min,leakage current ≤5mA Completed cable Voltage withstand(Core A to A &B,10m): AC 3.5kV/15min,leakage current ≤5mA Min. Insulation resistance(20ºC, Core A to A &B):500MΩ.km |
Tensile strength: ≥20MPa Elongation: ≥300% Aged condition: 110±1ºC×168h Percent of original tensile strength: ≤±30% Percent of original elongation: ≤±30% Flame test: GB/T 18380.12-2008 Min. Bend radius: 6*OD Abrasion resistance: ≥2000times |

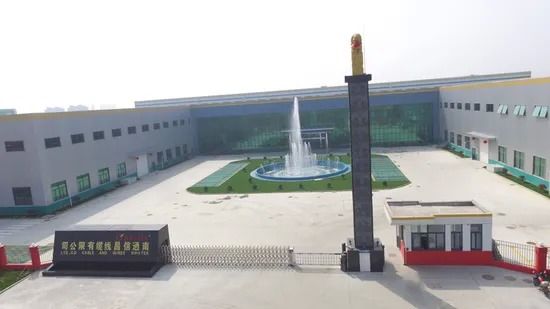

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
اتصل شخص: Jimmy Wang
الهاتف :: 17715039722
