HWATEK WIRES و CABLE CO.، LTD.
| رقم النموذج: | UL62 | القدرة الإنتاجية: | 20 كم/يوم |
|---|---|---|---|
| درجة الحرارة المقدرة: | 80 درجة مئوية ~ 105 درجة مئوية | الجهد المقنن: | 450/750 فولت |
| مواد موصل: | معلب أو النحاس العاري | مادة العزل: | TPE أو PVC |
| مادة سترة: | TPE أو PVC | مقاومة درجة الحرارة المنخفضة: | -40 درجة مئوية |
| مرونة الكابل: | مرن | مقاومة الزيت: | جيد |
| مقاومة الضغط: | جيد | مقاومة التآكل: | جيد |
| التيار المرجعي: | 16A ، 32A ، 60A | لون الكابل: | برتقالي / أسود |
| تشكيل الأسلاك: | 3x10mm²+2x2.5mm مربع+2p (2x0.75mm مربع) ، 3x6mm²+2x2.5mm مربع+2p (2x0.75mm مربع) ، 5x6mm²+1p (2x0.75 | ||
| إبراز: | UL62 Standard EV Charging Cable,Low Temperature Resistant EV Cable,80ºC~105ºC Rated Temperature Electric Vehicle Charging Cable,Low Temperature Resistant EV Cable,80ºC~105ºC Rated Temperature Electric Vehicle Charging Cable |
||

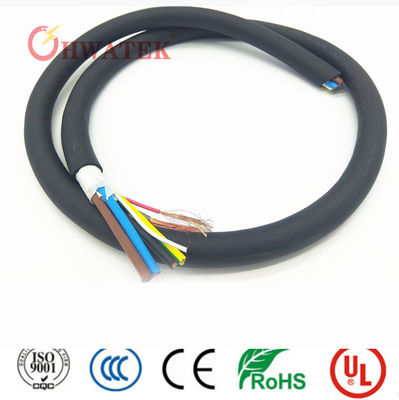

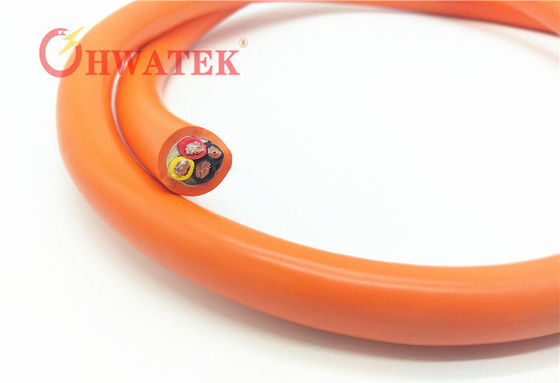

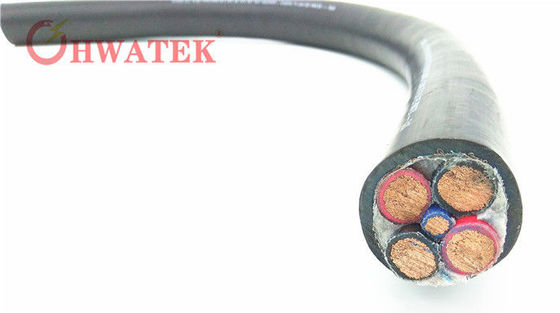

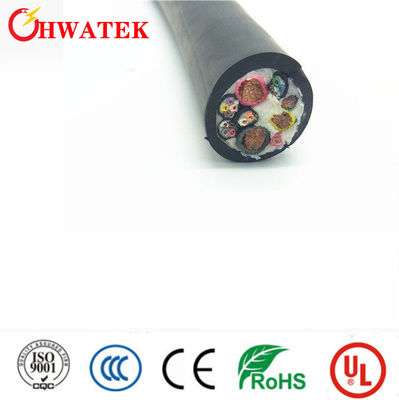

Application: Connection wire between EV charging equipment and EV, suitable for various electric vehicles, charging stations, and charging piles.
Note: Similar specifications can be customized according to customer requirements.

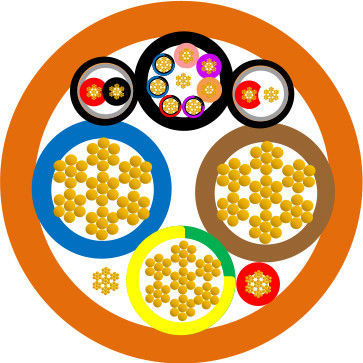

| Charging Pile System Wire | Rated Voltage | Reference Current | Color |
|---|---|---|---|
| 3x10mm²+2x2.5mm²+2P(2x0.75mm²) | 450/750V | 60A | Orange/Black |
| 3x6mm²+2x2.5mm²+2P(2x0.75mm²) | 450/750V | 32A | Orange/Black |
| 5x6mm²+1P(2x0.75mm²) | 450/750V | 32A | Orange/Black |
| 3x6mm²+1P(2x0.75mm²) | 450/750V | 32A | Orange/Black |
| 3x2.5mm²+1P(2x0.75mm²) | 450/750V | 16A | Orange/Black |

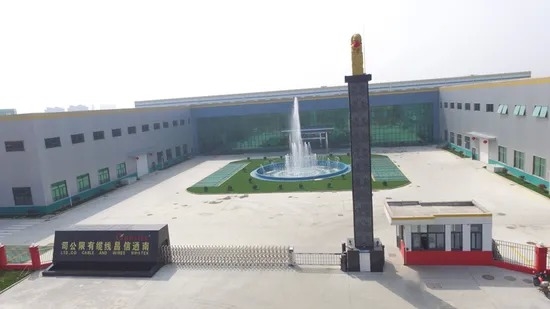

Founded in 2004 with 16 years of development, Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicated to R&D and production of various wires and cables including industrial control, communication instruments, medical control, green energy EV, and special wires and cables. OEM & ODM services are available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All our products are CCC, UL, CUL, CE, CSA, TUV, DEKRA, IEC, CQC or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we serve customers worldwide through our comprehensive sales network.
