HWATEK WIRES و CABLE CO.، LTD.
| مواد موصل: | النحاس العاري الذين تقطعت بهم السبل | مادة غمد: | TPU |
|---|---|---|---|
| مادة العزل: | اللدائن الحرارية (EF2585،85 ± 3A) | الجهد المقنن: | DC 1000V |
| درجة الحرارة المقدرة: | سترة -40 ~ 90 درجة مئوية ، عزل -40 ~ 125 درجة مئوية | أقصى مقاومة للموصل: | A: 0.242Ω/KM ، B: 0.78Ω/KM ، C: 4.95Ω/KM ، D&E: 26Ω/KM |
| جهد العزل تحمل: | AC 2.5kV/5min ، تيار التسرب ≤5MA | الجهد الكابل تحمل: | AC 3.5kV/15min ، تيار التسرب ≤5MA |
| مين عزل المقاومة: | 500MΩ.KM | قوة الشد: | ≥20MPA |
| استطالة: | ≥ 300٪ | الحد الأدنى لنصف قطر الانحناء: | 6*OD |
| مقاومة التآكل: | ≥ 2000 مرة | القطر الخارجي: | 38.00+0.6/-1.00mm |
| القدرة الإنتاجية: | 30 كم / يوم | ||
| إبراز: | 30km/Day Production Capacity EV Charging Cable,Multicore EV Charging Cable,Copper Conductor EV Charging Cable,Multicore EV Charging Cable,Copper Conductor EV Charging Cable |
||

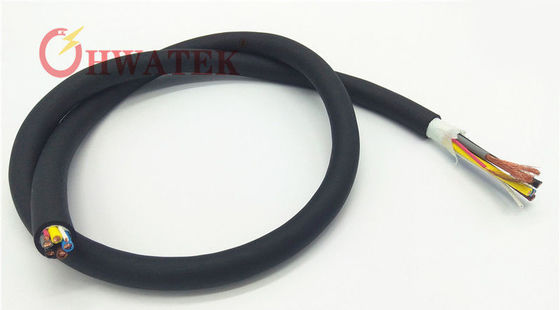

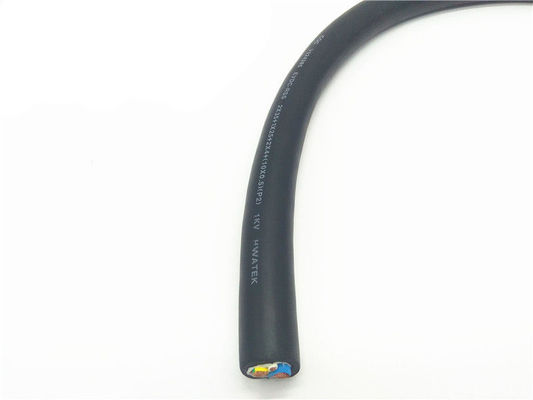

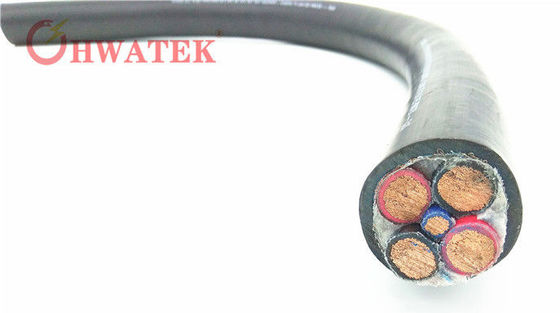

| Product | A: 2C×80mm² | B: 1C×25mm² | C: 1C×4mm² | D: (3C×0.75mm²)(P2) | E: (7C×0.75mm²) |
|---|---|---|---|---|---|
| CONDUCTOR | |||||
| Material | Bared copper stranded | ||||
| Size | 2580/0.20±0.008mm | 798/0.20±0.008mm | 224/0.15±0.008mm | 40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar | 40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar |
| O.D.(Ref.) | 12.40±0.25mm | 7.00±0.20mm | 2.70±0.15mm | 1.40±0.10mm | 1.40±0.10mm |
| INSULATION | |||||
| Material | Thermoplastic(EF2585,85±3A) | ||||
| Min. average thickness | 1.60mm | 1.20mm | 1.00mm | 0.50mm | 0.50mm |
| Min.thickness at any point | 1.34mm | 0.98mm | 0.80mm | 0.35mm | 0.35mm |
| O.D. | 15.60±0.40mm | 9.60±0.30mm | 4.70±0.20mm | 2.50±0.10mm | 2.50±0.10mm |
| Electrical Characteristics | Physical Properties |
|---|---|
| Rated voltage: DC 1000V | Tensile strength: ≥20MPa |
| Rated temperature: Jacket -40~90ºC Insulation -40~125ºC |
High temperature pressure test: ≤50% |
| Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km |
Heat shock test: No crack |
| Insulation Voltage withstand(Core A&B,10m): AC 2.5kV/5min,leakage current ≤5mA |
Compatibility test: GB/T 33594 |
| Completed cable Voltage withstand(Core A to A&B,10m): AC 3.5kV/15min,leakage current ≤5mA |
Crush resistance test: GB/T 33594 |
| Min. Insulation resistance(20ºC, Core A to A&B): 500MΩ.km | Curved around the test: GB/T 33594 |

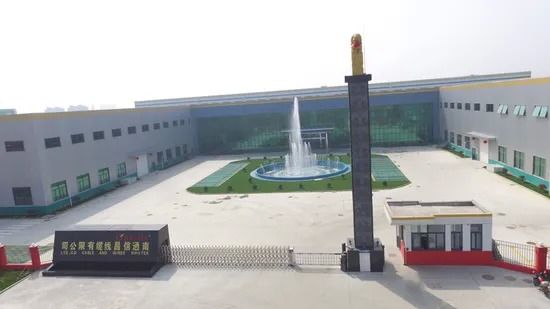

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
A: Yes, we are willing to arrange samples for you.
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
