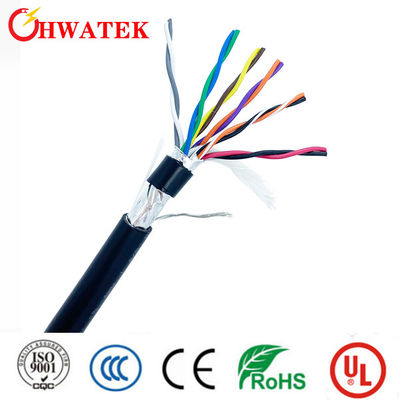

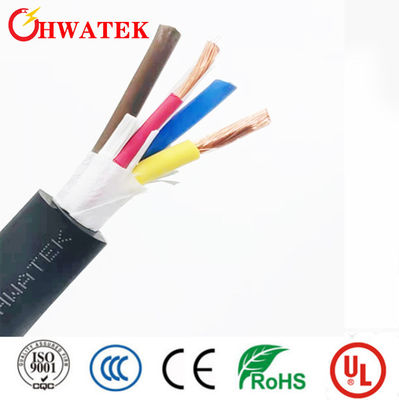

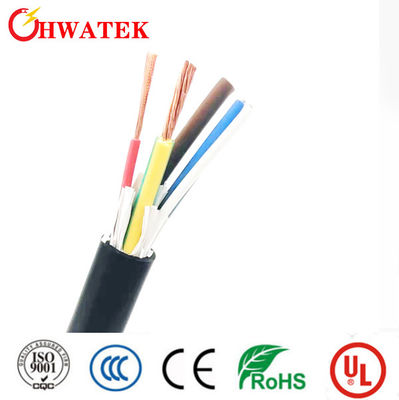

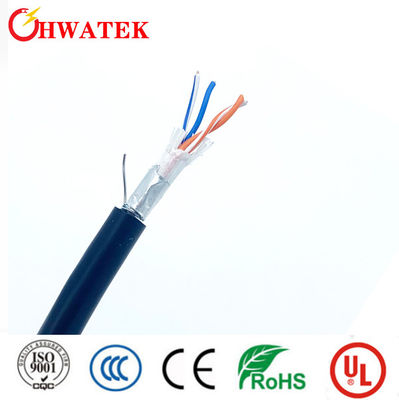

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable

Basic Properties
Place of Origin: الصين
Brand Name: HWATEK
Certification: UL
Model Number: CL2
Trading Properties
Minimum Order Quantity: 1000
Price: negotiable
Standard Packaging: بكرات أو لفات
Delivery Time: 4 أسابيع
Payment Terms: ر/ر
Supply Ability: 1000 كم/ شهر
Product Summary
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable Product Specifications Construction Conductor Bare copper starned Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min...

Product Details

Rated Voltage: 150 فولت
Rated Temperature: 75 درجة مئوية
Conductor Material: تقطعت بهم السبل النحاس العارية
Conductor Size: 16/0.254mm
Insulation Material: SR-PVC
Insulation Thickness: 0.23mm
Min Insulation Thickness: 0.2mm
Outer Diameter: 1.70 ± 0.10mm
Jacket Material: PVC
Jacket Thickness: 0.84ملم
Min Jacket Thickness: 0.66ملم
Cable Outer Diameter: 7.6 ± 0.30 مم
Max DC Resistance: 21.4Ω/كم
Tensile Strength: ≥10.3mpa
Elongation: ≥ 100٪
Spec: HT2504809
Product Description
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable Product Specifications Construction Conductor Bare copper starned Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min.Thickness 0.20mm Insulation Dia. 1.70±0.10mm Insulation colour 1.white 2.red 3.green 4.blue 5.yellow 6.brown 7.orange 8.black Filler optional Assembly 8Cx18AWG Jacket PVC Nom.Thickness 0
